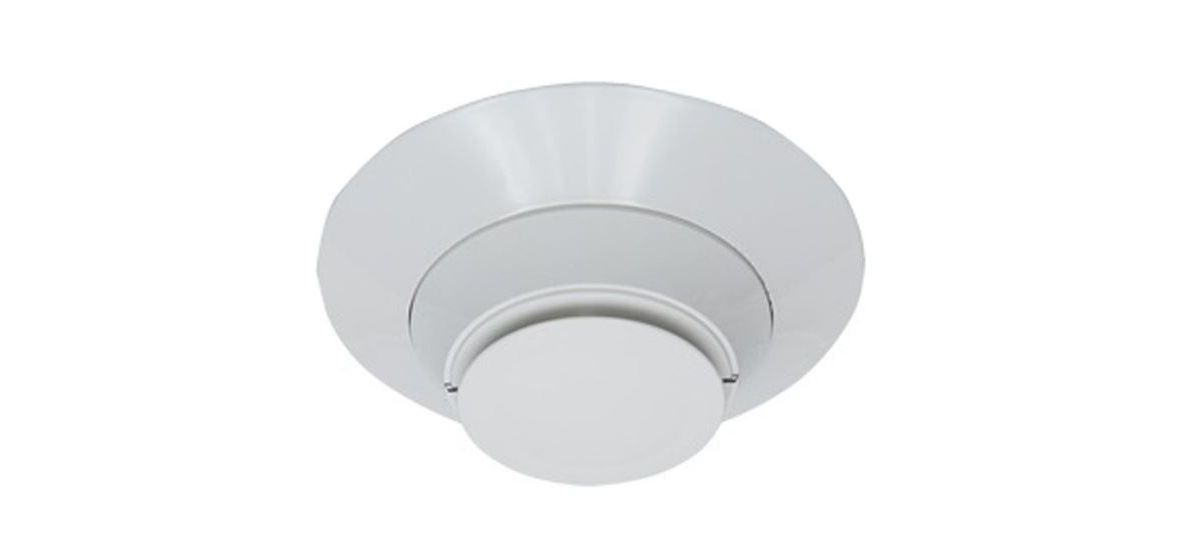

Notifier FSP-951-IV FlashScan Ivory Photoelectric Smoke Sensor
2 UNITS IN STOCK - FAST SHIPPING
FSP-951-IV is the ivory version of the Notifier FSP-951 low-profile intelligent plug-in photoelectric smoke sensor. The -IV suffix identifies a device that supports both FlashScan and CLIP protocols, so it can be used on the signaling line circuit (SLC) of Notifier panels running either mode. Sensitivity is programmed and monitored from the control panel, and the address is set with rotary decimal switches. The sensor mounts on a separately ordered detector base.
Specifications
| Detection method | Photoelectric |
| Protocol | FlashScan and CLIP (-IV suffix) |
| Color | Ivory |
| Addressing | Rotary decimal switches (device capacity per Notifier panel manual) |
| Sensitivity, UL applications | 0.5% to 4.0% per foot obscuration |
| Factory setting | 1.5% nominal sensitivity for panel alarm threshold |
| Voltage range | 15-32 VDC peak |
| Standby current (max. avg.) | 200 µA at 24 VDC (one communication every 5 seconds, LED enabled) |
| Max. current | 4.5 mA at 24 VDC (on) |
| Height | 2.0 in (51 mm); diameter depends on base |
| Diameter with B300-6 series base | 6.1 in (15.6 cm) |
| Diameter with B501 series base | 4 in (10.2 cm) |
| Operating temperature | 32°F to 122°F (0°C to 50°C) |
| Relative humidity | 10% to 93%, noncondensing |
| Air velocity range (UL/ULC listed) | 0-4000 ft/min (1219.2 m/min) |
| Design standard | Designed to meet UL 268 7th Edition |
| Shipping weight | 3.4 oz (95 g) |
| Listings and approvals (FSP-951 Series) | UL/ULC S1115; FM Approved; CSFM 7272-0028:0503 |
Compatibility and installation notes
- Plug-in sensor: order a compatible base separately. Ivory bases listed in the data sheet include B300-6-IV (6 in flanged low-profile), B501-IV (4 in flangeless), B224RB-IV relay base, B224BI-IV isolator base, and B200S-IV, B200SR-IV, B200S-LF-IV and B200SR-LF-IV sounder bases.
- Mount the base on an electrical backbox at least 1.5 in (3.81 cm) deep.
- End-of-line resistors are not required on the SLC; T-taps are permitted for Class B wiring only.
- When using relay or sounder bases, check the ISO-X installation sheet I56-1380 for device limits between isolator modules and isolator bases.
- LED blinks when polled and latches on in alarm. Walk test with address display works on FlashScan systems only.
- Built-in functional test switch is activated by an external magnet; the cover and insect screen are removable for field cleaning.
- Space detectors per NFPA 72.
- Notifier describes the FSP-951 Series as a direct replacement for the FSP-851 Series.
Related models
- FSP-951: white version, FlashScan only
- FSP-951A-IV: same as FSP-951-IV with ULC listing
- FSP-951T-IV: ivory, adds a built-in 135°F (57°C) fixed-temperature thermal device
- FSP-951R-IV: ivory, remote-test-capable version for DNR/DNRW duct housings
- CK300-IV: ivory color kit (cover and trim ring), 10-pack
Documents
- Notifier data sheet DN-60977 (FSP-951 Series)
- Honeywell product page: FSP-951 Series Photoelectric Smoke Detector
Specifications from Notifier data sheet DN-60977:D (8/13/2020). Manufacturer specifications are subject to change.
