MS-7AF

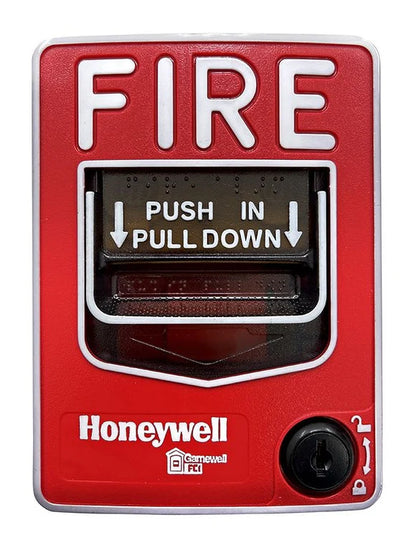

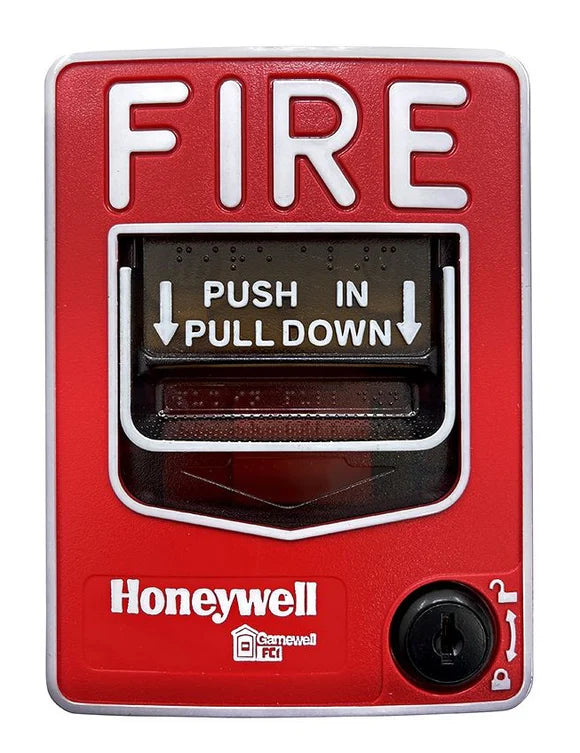

Gamewell-FCI MS-7AF Addressable Double-Action Pull Station
01
Specifications
- Manufacturer
- Gamewell-FCI
- Part number
- MS-7AF
- Product type
- Pull Stations
- Protocol
- Addressable, Velociti
- Mounting
- Surface, Wall
- Certification
- Nfpa 72, Ul 38
02
Before you order
Match the part number to the one specified for your system, and check compatibility and required accessories (such as the detector base) in the manufacturer's documentation.
—
Product details
MS-7AF is a Velociti Series addressable double-action pull station for Gamewell-FCI analog addressable fire alarm panels. When pulled, it registers its assigned address at the panel. The door LED flashes green in normal and turns steady red once the station is activated.
Key features
- Double-action operation for Gamewell-FCI analog addressable panels
- Key lock and reset keyed alike with Gamewell-FCI panels
- Meets the ADA 5 lb maximum pull force; Braille text in the handle
- Screw terminals; shock and vibration resistant
- Velociti protocol group polling for faster response
Specifications
| Material | Lexan |
| Dimensions | 5-5/8 in H x 4-1/4 in W x 1-1/4 in D |
| Operating temperature | 32°F to 120°F (0°C to 49°C) |
| Humidity | 10% to 93% non-condensing |
| Listings | UL S2465, FM, MEA, CSFM |
Before you order
Only the red LED works on panels not running Velociti mode. Surface mount on the SB-10 or SB-I/O back box, or semi-flush on a double-gang or 4 in square box with the optional BG12TR trim ring.
—
