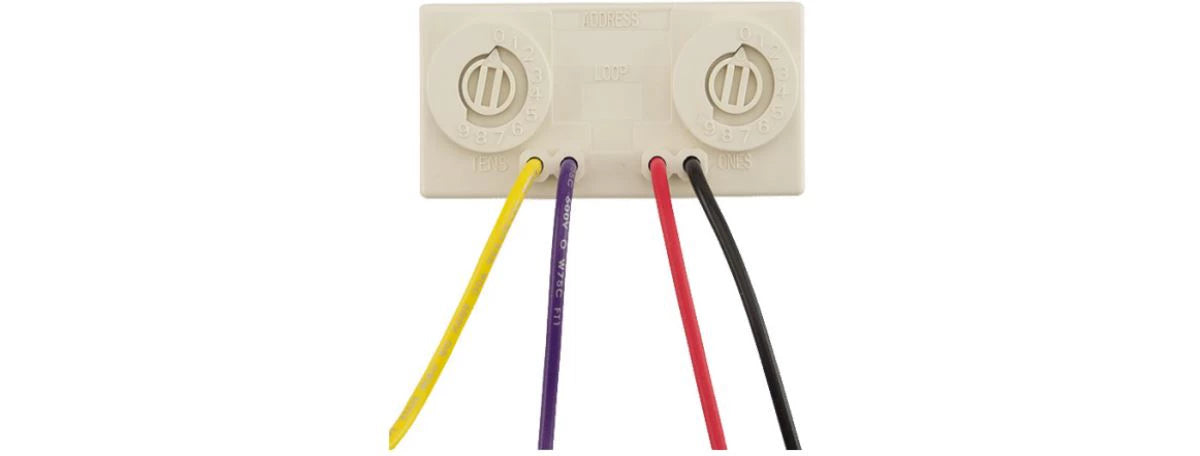

AMM-2F is a Gamewell-FCI Velociti Series addressable monitor module with one Style B (Class B) initiating device circuit supervised by a 47K ohm end-of-line resistor. It gives an address on the signaling line circuit (SLC) of a Gamewell-FCI addressable fire alarm control panel to any device or group of devices with normally open dry contacts, such as manual stations, waterflow switches or tamper switches. Its compact size allows it to be installed inside manual stations or in the mounting boxes of initiating devices.

Specifications

Compatibility and installation notes

• Installs on the SLC of Gamewell-FCI addressable series fire alarm control panels.
• Can be programmed as a manual station, heat detector, plenum detector, waterflow switch, tamper switch, N.O. contact, smoke detector, projected beam detector, sub loop or remote zone, among other device types.
• Can also serve as a remote system silence, system reset, system acknowledge or drill switch input.
• The 40 ohm line resistance allowance supports linear heat detection devices on the initiating circuit.
• Install a 47K ohm end-of-line resistor on the initiating device circuit.
• Refer to the Gamewell-FCI panel installation manual for wiring and device capacity.

Related models

• AMM-4F: Gamewell-FCI addressable monitor module (data sheet 9020-0624)
• AMM-2IF: Gamewell-FCI addressable monitor module (data sheet 9020-0629)

Documents

• Gamewell-FCI data sheet 9020-0626 (AMM-2F)
• Honeywell product page: Gamewell Addressable Monitor Module

Specifications from Gamewell-FCI data sheet 9020-0626, revision F (11/17). Manufacturer specifications are subject to change.
