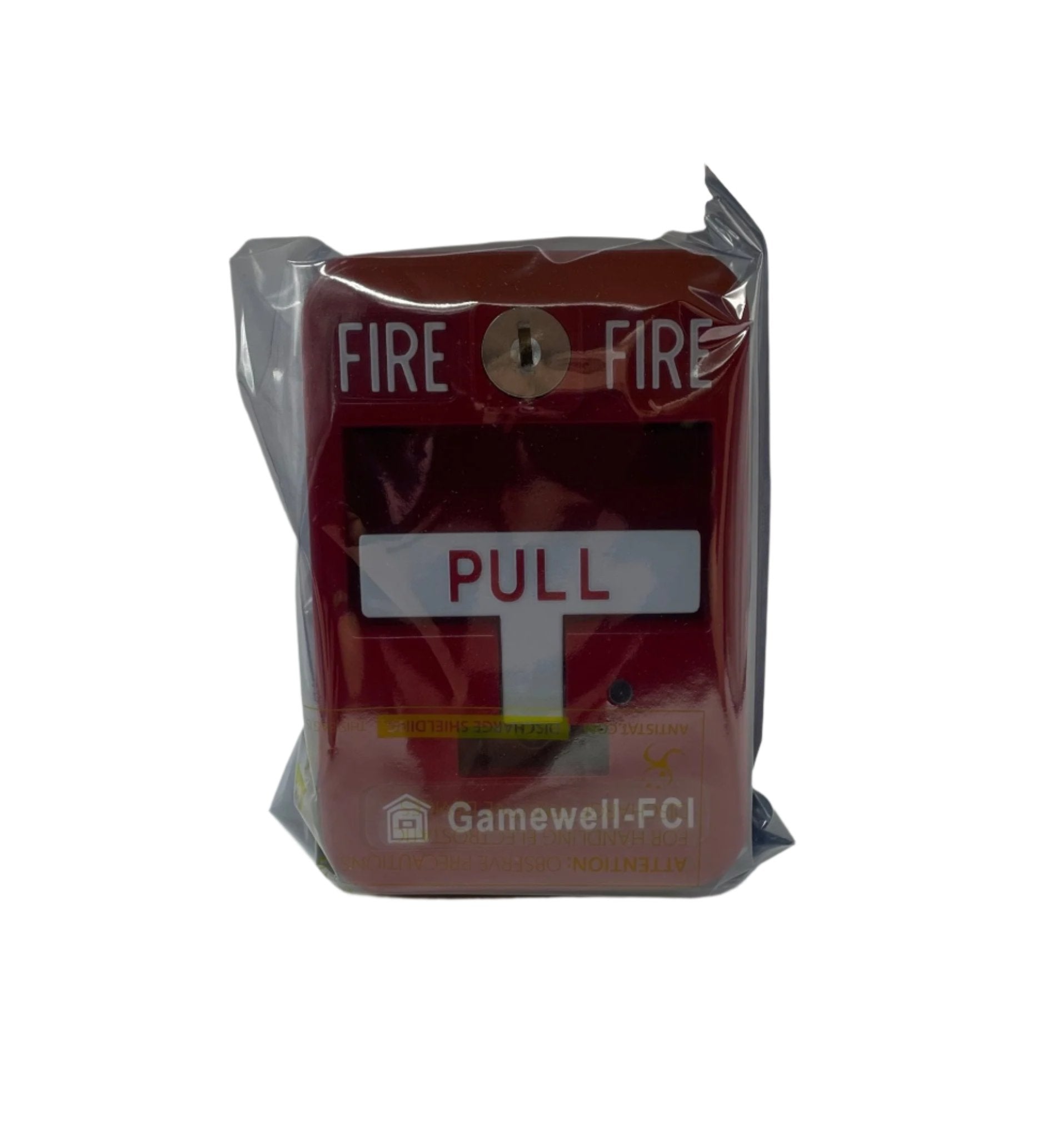

Gamewell-FCI GWMS-95T Addressable Single-Action Manual Pull Station — Terminal Block, Key Reset

Reliable Addressable Single-Action Manual Pull Station — Terminal Block, Key Reset for Commercial Fire Alarm Systems

The Gamewell-FCI GWMS-95T Addressable Single-Action Manual Pull Station — Terminal Block, Key Reset is a Addressable single-action manual pull station — terminal block, key reset designed for use in compatible Gamewell-FCI fire alarm systems. This product supports professional fire alarm installations, service replacements, and system expansion projects where dependable performance and correct system compatibility are essential.

Die-cast aluminum addressable pull station with terminal block. Faster retrofit wiring on legacy 602, ILI95-E3, SLC95-PM systems.

Key Features

• Internal terminal block, faster retrofit wiring than wire-lead variant
• Die-cast aluminum housing, rugged toggle switch design
• Single-action with key-lock reset
• : 5-lb max pull force
• For legacy 602, ILI95-E3, SLC95-PM addressable loops
• Otherwise identical to GWMS-95 (wire-lead variant)
• Fire alarm red, smooth gloss enamel finish
• Listed
• 95-series addressable system compatibility
• Designed for compatible Gamewell-FCI fire alarm systems

Ideal Applications

• Retrofit installs preferring terminal-block wiring
• Legacy Gamewell-FCI 602 / E3 / S3 95-series loops
• Industrial spaces where vibration tolerance matters
• Indoor commercial corridors and stairwells

Why Choose the GWMS-95T?

The GWMS-95T helps support a reliable, serviceable fire alarm system by matching the required device type, platform, and application needs. It is a strong choice for contractors, facility managers, and service companies looking for genuine Gamewell-FCI equipment for commercial fire protection projects.

Technical Specifications

• Manufacturer: Gamewell-FCI
• Model: GWMS-95T
• Product Type: Addressable single-action manual pull station — terminal block, key reset
• Series: MS-95 Series
• Protocol / Platform: 95-series addressable
• Voltage Range: 24 VDC
• Standby Current: 0.0008 A (0.8 mA)
• Alarm Current: 0.0015 A (1.5 mA)
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• Humidity Range: 93% non-condensing
• Air Velocity Range: Not applicable
• Dimensions: 4.75 in H × 3.25 in W × 1⅛ in D from backplate (10.79 × 8.25 × 2.99 cm)
• Weight: Not specified
• Color: fire alarm red
• Certifications: (manual pull stations), UL Listing: S281: 7300-1703:0136
• Compatible Bases: P/N 28762 surface backbox, P/N 71961 surface backbox (key-reset option), P/N 50397G weatherproof gasket, P/N 72198 NYC manual station backplate
• Compatible Panels: Gamewell-FCI IdentiFlex 602 (600 Series), Gamewell-FCI E3 Series ILI95-E3, Gamewell-FCI S3 Series SLC95-PM
