Farenhyt RA-2000 Remote Annunciator
Specifications
- Manufacturer
- Farenhyt
- Part number
- RA-2000
- Product type
- Annunciators
Before you order
Match the part number to the one specified for your system, and check compatibility and required accessories (such as the detector base) in the manufacturer's documentation.
Product details

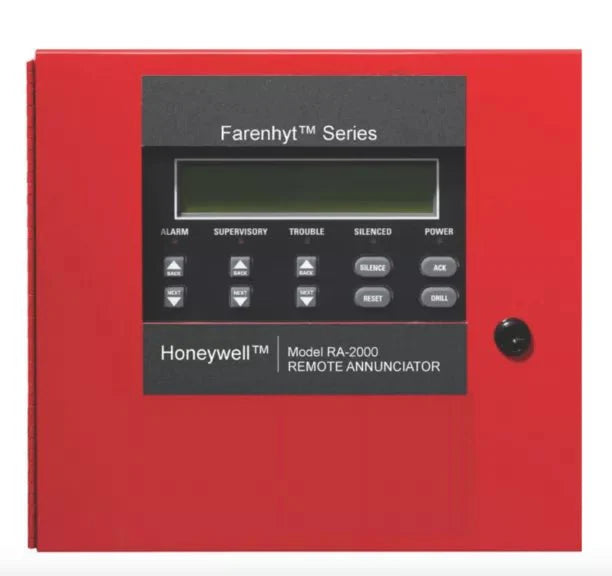

RA-2000 is a Farenhyt Series remote annunciator in red that can both display and operate a compatible Honeywell Farenhyt fire alarm control panel. It has a backlit 4-line by 40-character LCD that mirrors the panel display and connects to the panel over the RS-485 SBus. It is housed in a locked, key-controlled cabinet for flush or surface mounting.
Key features
- 4 × 40 character backlit LCD mirroring the panel display
- Status LEDs for AC power, alarm, supervisory, trouble and silence
- Four programmable function keys and one-key fire drill start/stop
- Onboard piezo sounder for alarms, troubles and supervisories
- Wiring runs up to 6,000 ft from the control panel
Specifications
| Interface | RS-485 SBus |
| Display | Backlit LCD, 4 lines × 40 characters |
| Color | Red |
| Operating voltage | 24 VDC |
| Standby current | 27 mA |
| Alarm current | 53 mA |
| Operating temperature | 32°F to 120°F (0°C to 49°C) |
| Humidity | 0–93% RH non-condensing |
| Flush mount (outside) | 12.25 in W × 11.05 in H × 0.875 in D |
| Surface mount (with trim ring) | 12.25 in W × 11.05 in H × 3.0 in D |
| Standards | UL 864 10th Ed., UL 2572 2nd Ed., NFPA 72 |
| Listings | UL S3511, CSFM, FDNY 6162 |
Before you order
For surface mounting, order the RA-100TR red trim ring separately. Compatible panels include the IFP-75, IFP-100, IFP-300, IFP-1000, IFP-2100 and RFP-2100 families (and their ECS versions); a gray version is sold as RA-2000GRAY.
