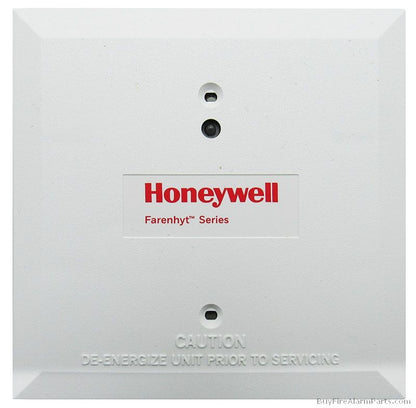

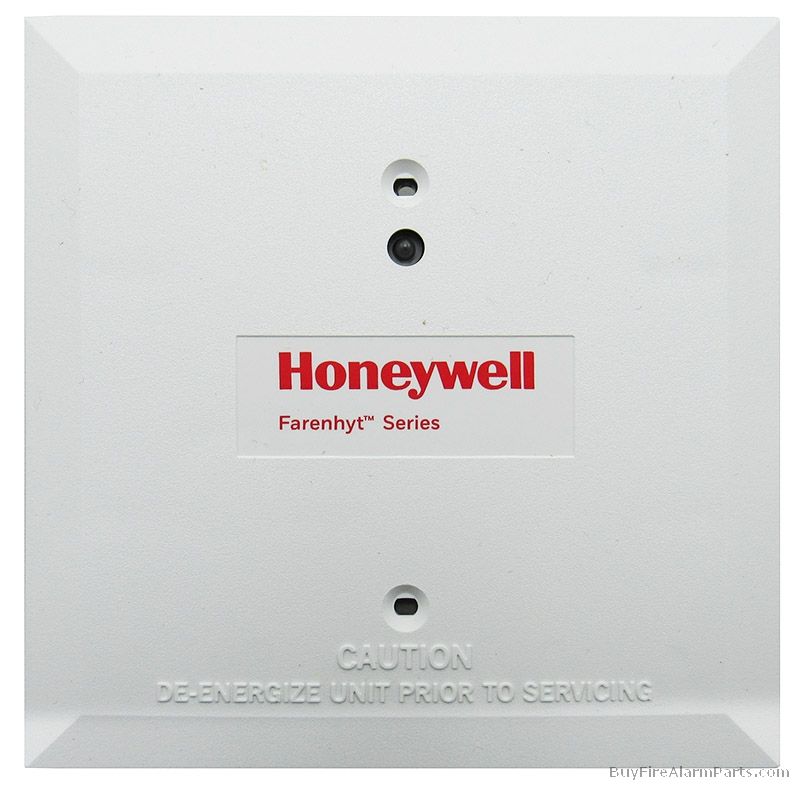

Farenhyt IDP-MONITOR-2 Dual Monitor Module
Specifications
- Manufacturer
- Farenhyt
- Part number
- IDP-MONITOR-2
- Product type
- Monitor Modules
- Platform
- Idp, Intelliknight
Before you order
Match the part number to the one specified for your system, and check compatibility and required accessories (such as the detector base) in the manufacturer's documentation.
Product details
IDP-MONITOR-2 is a Farenhyt Series addressable dual monitor module with two independent Class B initiating circuits, each at its own address. It interfaces contact devices such as waterflow switches, tamper switches and pull stations with Honeywell Farenhyt panels, and can also watch conventional 4-wire smoke detectors for alarm and trouble. Monitoring two circuits in one box makes it a good fit for a waterflow/tamper pair at a sprinkler riser.
Key features
- Two supervised Class B input circuits with unique addresses
- Panel-controlled LED flashes green in normal and turns solid red in alarm
- Rotary address switches for quick setup
- SEMS screws for easy wiring
- UL, CSFM and MEA listed
Specifications
| Inputs | 2 Class B initiating circuits |
| Operating voltage | 15–32 VDC |
| Max. current draw | 6.4 mA (LED on) |
| SLC standby & alarm current | 750 µA max. @ 24 VDC |
| EOL resistor | 47K ohms |
| Operating temperature | 32–120°F (0–49°C) |
| Humidity | 10–93% non-condensing |
| Dimensions | 4.5 in H × 4 in W × 1.3 in D |
| Mounting | 4 in square × 2⅛ in deep box |
| Listings | UL, CSFM, MEA 457-99-E |
Before you order
Both inputs are wired Class B. Compatible panels include IFP-50, IFP-75, IFP-100, IFP-300, IFP-1000, IFP-2000 and IFP-2100 series; the SMB500 surface box is optional.
