00RA-1000R
Farenhyt RA-1000R Remote Annunciator
01
Specifications
- Manufacturer
- Farenhyt
- Part number
- 00RA-1000R
- Product type
- Annunciators
02
Before you order
Match the part number to the one specified for your system, and check compatibility and required accessories (such as the detector base) in the manufacturer's documentation.
—
Product details

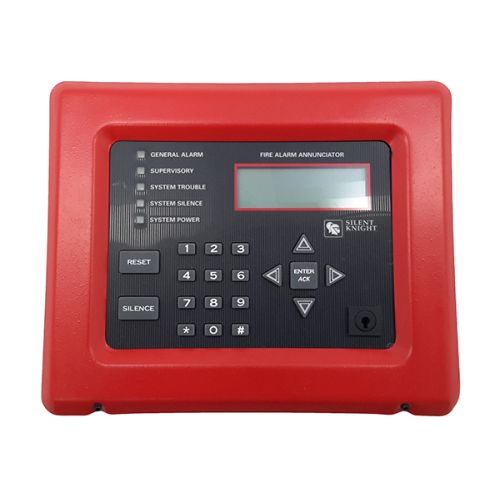

00RA-1000R is the red RA-1000R remote annunciator for Farenhyt IFP-series fire alarm panels. Its keypad and 80-character display match the panel's built-in annunciator, so users can check status, silence, reset and run drills from a second location. It connects to the panel over the RS-485 SBUS.
Key features
- Backlit 4-line x 20-character LCD
- Five status LEDs: alarm, supervisory, trouble, silence and AC power
- Built-in piezo sounder and single-key fire drill
- Accepts user codes or a firefighter key
- Surface or flush mounting
Specifications
| Compatible panels | IFP-50, IFP-75, IFP-100/ECS, IFP-300/ECS, IFP-1000/ECS, IFP-2100/ECS |
| Connection | RS-485 SBUS |
| Operating voltage | 24 VDC |
| Wiring distance | Up to 6,000 ft from the panel (depends on wire gauge and SBUS devices) |
| Max per system | 8 (IFP-50/75), 12 (IFP-100, IFP-1000), 16 (IFP-300), 31 (IFP-2100) |
| Dimensions | 9.1 in W x 7.4 in H x 1.5 in D |
| Operating temperature | 32°F to 120°F (0°C to 49°C) |
| Color | Red |
| Listings | UL, FM, CSFM, MEA |
Before you order
For surface mounting, add the 5860TR red trim ring. A back box is optional for flush mounting (4S, single-gang or double-gang).
—
