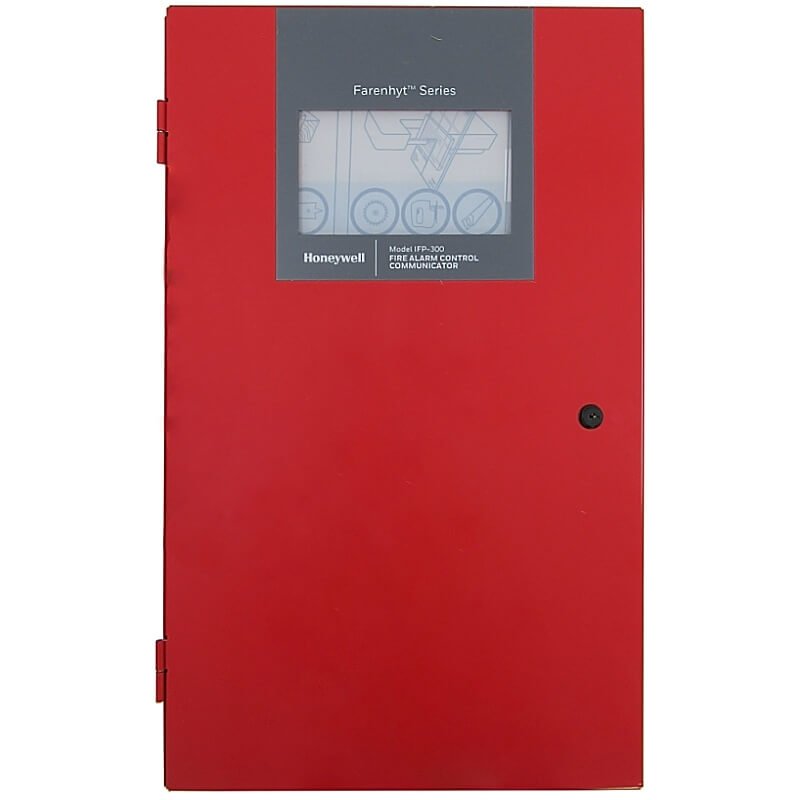

Farenhyt IFP-300 Intelligent Fire Alarm Control Panel, Red

Farenhyt IFP-300 Intelligent Fire Alarm Control Panel, Red
$1,012.90per unit
15 units on hand
01

Specifications

Manufacturer
Farenhyt
Part number
IFP-300
Product type
Control Panels
02

Before you order

Match the part number to the one specified for your system, and check compatibility and required accessories (such as the detector base) in the manufacturer's documentation.

—

Product details

IFP-300 is a Honeywell Farenhyt Series intelligent addressable fire alarm control panel in a red cabinet, a direct replacement for the IFP-100. Its built-in SLC supports System Sensor IDP/SK devices or Hochiki SD devices, and capacity can be expanded with SLC expander boards. It includes a four-line display, built-in dual-line communicator with IP and optional cellular paths, and network support.

Key features

  • One built-in SLC: 159 IDP/SK detectors plus 159 IDP/SK modules, or 127 SD devices
  • Expandable to 300 points (IDP/SK, 6815 expander) or 254 points (SD, 5815XL expander)
  • Built-in dual phone line DACT with IP and optional cellular communication
  • Four-line, 40-character LCD; JumpStart auto-programming and USB programming port
  • Built-in NAC synchronization for AMSECO, Gentex, System Sensor and Wheelock strobes

Specifications

Series Honeywell Farenhyt
Cabinet color Red (black version: IFP-300B)
SLC capacity (built-in loop) 159 IDP/SK detectors + 159 IDP/SK modules, or 127 SD devices
Max. points per panel 300 (IDP/SK) or 254 (SD)
NAC power 6.0 A total over 4 sets of terminals
Wireless Up to 4 SWIFT gateways, 49 devices each
Network Up to 32 sites
SLC wiring Class B (Style 4) or Class A (Style 6/7)
Mounting Surface or flush

Before you order

Batteries, SLC devices and any expander boards are ordered separately. Honeywell lists the IFP-300 as discontinued, so confirm it matches the existing installation or check the current replacement model before ordering for a new project.

—
