Farenhyt IDP-RELAYMON-2 Relay Monitor Module
Specifications
- Manufacturer
- Farenhyt
- Part number
- IDP-RELAYMON-2
- Product type
- Relay Modules
- Platform
- Idp, Intelliknight
Before you order
Match the part number to the one specified for your system, and check compatibility and required accessories (such as the detector base) in the manufacturer's documentation.
Product details

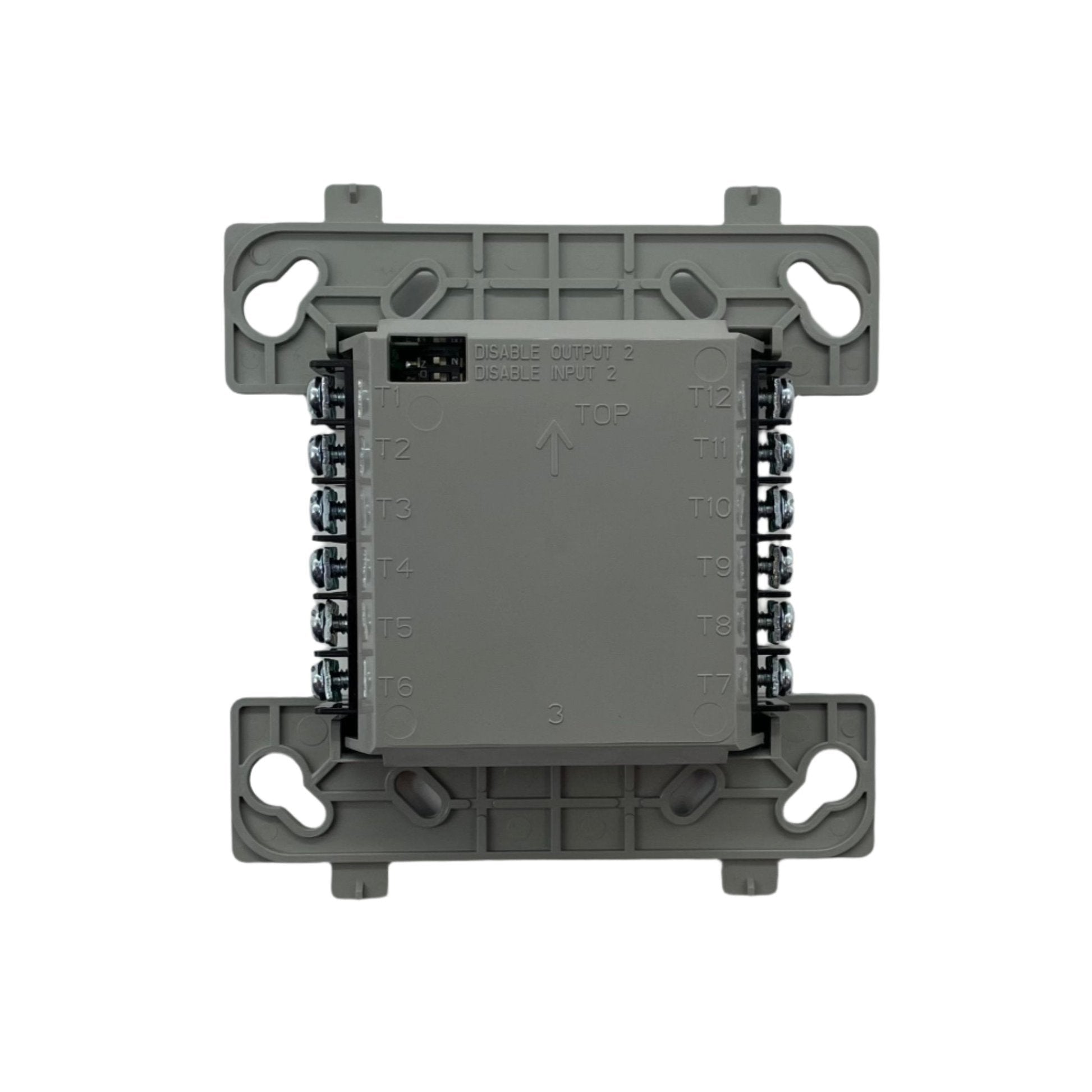

IDP-RELAYMON-2 is a Farenhyt Series addressable multi-input/output module that combines two Form C relay outputs and two Class B monitor inputs in one device. Each relay and each input has its own address, so a single 4 in square box can handle, for example, two supervised contact devices and two auxiliary control points. It is designed for Honeywell Farenhyt intelligent two-wire SLC loops.
Key features
- Two Form C relay contacts, each at its own address
- Two supervised Class B monitor inputs, each at its own address
- Relay programming can be mapped to zone conditions
- Individual LED for each input and output
- Rotary address switches and SEMS screw terminals
Specifications
| Outputs | 2 Form C relays (unsupervised load wiring) |
| Inputs | 2 Class B initiating circuits |
| Operating voltage | 15–32 VDC |
| Standby & alarm current | 1.3 mA |
| Relay rating (resistive) | 3 A @ 30 VDC non-coded; 2 A @ 30 VDC coded; 0.9 A @ 125 VDC |
| Relay rating (inductive) | 0.5 A @ 125 VAC (PF 0.75); 0.3 A @ 120 VAC (PF 0.35) |
| Operating temperature | 32–120°F (0–49°C) |
| Humidity | 10–93% non-condensing |
| Dimensions | 4.675 in H × 4.275 in W × 1.4 in D |
| Mounting | 4 in square × 2⅛ in deep box |
| Listings | UL, CSFM, FM |
Before you order
Relay outputs do not supervise the load wiring, so use a control module for notification appliances. Compatible panels include IFP-50, IFP-75, IFP-100, IFP-300, IFP-1000, IFP-2000 and IFP-2100 series; the SMB500 surface box is optional.
