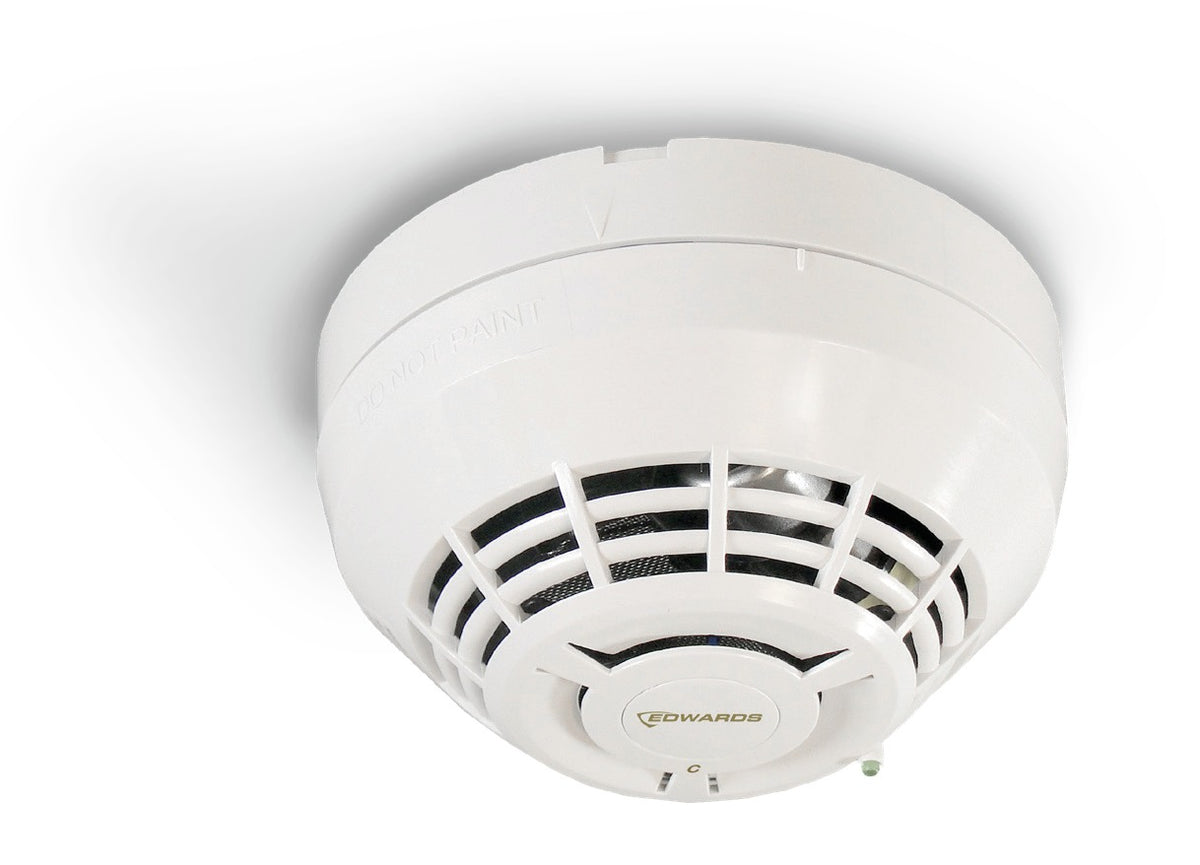

Edwards SIGA-COD Signature Series Intelligent Carbon Monoxide Detector
30 UNITS IN STOCK - FAST SHIPPING
SIGA-COD is an Edwards Signature Series intelligent carbon monoxide detector with an electrochemical CO sensor. It is compatible only with the Signature Loop Controller. The detector's microprocessor analyzes sensor readings over time to decide when to initiate a CO alarm, runs continuous self-diagnostics, and signals a trouble condition to the panel when the CO cell reaches end of life. It plugs into a separately ordered Signature Series detector base.
Specifications
| Sensing technology | Electrochemical carbon monoxide sensor |
| Operating voltage | 15.20 to 19.95 VDC |
| Normal operating current | 51 µA |
| Alarm current | 68 µA |
| CO alarm levels (per UL 2034, CAN/CSA 6.19) | 70 ppm: 60-240 min; 150 ppm: 10-50 min; 400 ppm: 4-15 min |
| CO false alarm levels (per UL 2034, CAN/CSA 6.19) | 30 ppm: 30 days; 70 ppm: 60 min |
| Sensor life | 10 years from date of manufacture or panel end-of-life indication, whichever comes first (EST3/EST3X panels use 6-year timing) |
| Operating environment | 32°F to 120°F (0°C to 49°C), 0-90% RH noncondensing |
| Storage temperature | -4°F to 140°F (-20°C to 60°C) |
| Vibration level | 10 to 35 Hz, amplitude 0.01 in |
| Construction | High-impact engineering polymer, white |
| Status LED | Bicolor (green/red) |
| Compatible detector testers | Testifire 1000, Testifire 2000 |
| Agency listing | UL 2075; evaluated to the CO alarm sensitivity limits of UL 2034 |
| Shipping weight | 0.4 lb (0.16 kg) |
Compatibility and installation notes
- Compatible only with the Edwards Signature Loop Controller; feature support depends on the control panel.
- Compatible bases: SIGA-SB, SIGA-SB4, SIGA-RB, SIGA-RB4, SIGA-IB, SIGA-IB4, SIGA-AB4GT and SIGA-AB4G-LF. SIGA-LED remote LED works with SIGA-SB/SB4 only.
- For a CO (TC4) tone pattern on SIGA-AB4GT or SIGA-AB4G-LF sounder bases, a SIGA-TCDR Temporal Pattern Generator is required.
- Bases mount to North American 1-gang boxes, 3-1/2 in or 4 in octagon boxes 1-1/2 in (38 mm) deep; 4 in bases also fit 4 in square boxes.
- Bases accept 18 to 12 AWG wire; 16 and 18 AWG are preferred.
- At end of sensor life the panel shows a trouble that remains until the detector is replaced. Plan maintenance per NFPA 72, NFPA 720 and the AHJ.
- The manufacturer notes that people with special medical conditions may need devices that alarm below 30 ppm.
Related models
- SIGA-COD-CA: Canadian market version, ULC listed to CAN/CSA 6.19
- SIGA-OSHCD: Signature Series smoke, heat and CO detector
- SIGA-HRD: Signature Series fixed temperature/rate-of-rise heat detector
Documents
Specifications from Edwards data sheet E85001-0648, Issue 1.3. Manufacturer specifications are subject to change.
