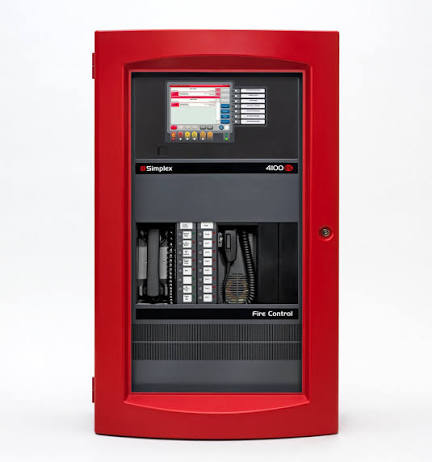

Simplex 4100ES Panel: Common Replacement Modules & Parts
The modules and parts most often needed to keep a Simplex 4100ES fire alarm panel running - cards, TrueAlarm detectors, power and more - plus how to confirm compatibility.
The Simplex 4100ES is a large-scale intelligent addressable fire alarm platform found in schools, hospitals, high-rises, and campuses across the country. Its modular card-cage design is a big part of why it lasts so long - when something fails, you usually replace a card or a device, not the whole panel. This guide covers the modules and parts most often needed to keep a 4100ES running.
What the 4100ES Is
The 4100ES is the current generation of Simplex's flagship 4100 family, evolved from the earlier 4100 and 4100U. It uses a modular architecture: a central controller plus plug-in cards for SLC loops, power, audio, and network functions. Field devices communicate over IDNet / IDNet2, with support for legacy MAPNET in many configurations. Because so much is modular, most repairs come down to identifying and swapping the right card or device.
Cards and Modules
The parts most commonly replaced or added inside a 4100ES cabinet include:
- Controller / CPU cards - the brains of the panel
- IDNet SLC loop cards - drive and supervise the addressable device loops
- Power supply and expansion power modules - for panel and notification loads
- Audio / amplifier cards - for voice evacuation and speaker circuits
- NAC (notification appliance circuit) cards - drive horns, strobes, and speakers
- Network interface cards - link multiple panels on a Simplex network
Because Simplex cards are matched to panel configuration and firmware, always confirm the exact part number and revision before ordering. Browse options in Simplex replacement parts.
Detectors and Devices on the Loop
On the addressable side, the most-requested field devices for the 4100ES are the TrueAlarm 4098 series detectors (photoelectric, ionization, thermal, and multi-sensor) and their matching bases, plus IDNet interface modules such as the 4090 series for monitoring and control. Remember that detector heads and bases are separate part numbers.
Annunciators and Operator Interface
Remote LCD annunciators and operator interface assemblies are common service items, letting staff view and control the system away from the main panel. Browse the full Simplex catalog for displays and interface parts.
Power, Batteries, and Enclosures
As notification loads grow or standby calculations change, you may need additional power modules and correctly sized sealed lead-acid batteries. Cabinets and battery backboxes are also frequent replacements after damage or corrosion.
How to Confirm You Are Ordering the Right Part
- Read the exact part number off the card or device - Simplex uses numeric part numbers. Photograph the label.
- Match the protocol - IDNet / IDNet2 versus legacy MAPNET - to how the loop is programmed.
- Confirm the card fits your panel's configuration and firmware revision.
- Order detector bases separately from heads.
New, New-Old-Stock, or Refurbished?
Many 4100ES cards and TrueAlarm devices are current production. For older cards and discontinued items, new-old-stock and tested/refurbished units keep a repair-in-kind possible - almost always faster and cheaper than replacing the panel. See our Simplex replacement parts for hard-to-find components.
Frequently Asked Questions
Is the 4100ES the same as the 4100U?
They are part of the same 4100 family, but the ES is the newer generation. Some parts overlap and some do not - always confirm compatibility by part number and firmware.
Can I move cards between a 4100U and a 4100ES?
Not reliably. Card compatibility depends on the platform generation and configuration; verify against the approved list before swapping.
Do TrueAlarm detectors come with a base?
No - heads and bases are separate part numbers. Confirm the base model when ordering a replacement head.
