Addressable vs. Conventional Fire Alarm Systems: How to Choose
Addressable or conventional? We break down how each fire alarm system works, a side-by-side comparison, and how to choose the right one for your building and budget.
If you are specifying, upgrading, or replacing a fire alarm system, one of the first decisions is whether to go with an addressable or a conventional panel. Both are code-compliant and both protect buildings every day - but they work differently, cost differently, and suit different projects. This guide explains the difference in plain terms and helps you choose the right one for your building.
The Core Difference
Conventional systems
In a conventional system, initiating devices (smoke detectors, heat detectors, pull stations) are wired together in zones on initiating device circuits (IDCs). The panel knows which zone is in alarm, but not which specific device tripped. If you have ten detectors on Zone 3 and one activates, the panel simply reports "Zone 3." Someone then has to physically check each device in that zone.
Addressable systems

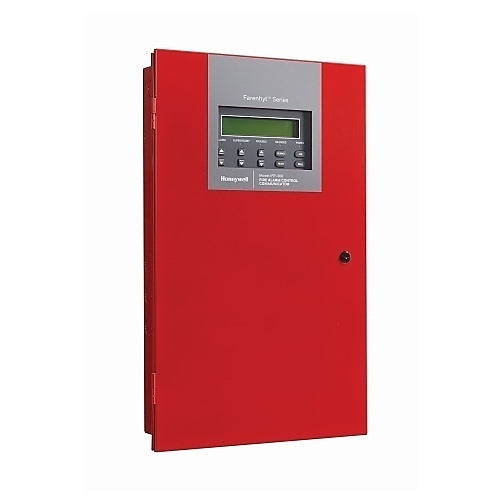

In an addressable system, every device sits on a signaling line circuit (SLC) and carries its own unique digital address. The panel reports the exact device and location - "Smoke Detector, 3rd Floor East Corridor" - instead of a whole zone. That precision speeds up response, simplifies troubleshooting, and enables features conventional systems cannot offer.
Side-by-Side Comparison
| Feature | Conventional | Addressable |
| Device identification | By zone | By individual device and location |
| Best building size | Small / simple layouts | Large / multi-tenant / complex |
| Wiring | More home-run wiring per zone | Loop wiring, fewer runs |
| Troubleshooting | Manual, zone by zone | Pinpointed at the panel |
| Maintenance features | Basic | Drift compensation, dirty-detector alerts |
| Upfront cost | Lower | Higher |
| Scalability | Limited | High |
Which One Is Right for Your Building?
A conventional system is usually the better fit when:
- The building is small and single-tenant with a simple layout
- The device count is low
- Upfront budget is the priority and future expansion is unlikely
An addressable system is usually the better fit when:
- The building is large, multi-story, or multi-tenant
- You need to know exactly where an alarm originates
- The site will expand or be modified over time
- You want maintenance alerts and reduced nuisance alarms
Does the Code Require One or the Other?
The national fire alarm code does not mandate a specific system type - both can be compliant. However, the requirements for larger and higher-risk occupancies (high-rise, healthcare, complex emergency communication) are far easier, and sometimes only practical, to meet with an addressable system. Always confirm the requirements for your occupancy with your authority having jurisdiction (AHJ).
A Note on Cost
Conventional panels are cheaper to buy, but on a large building the additional wiring and the labor spent chasing alarms zone-by-zone can erase that saving. On bigger or growing sites, an addressable system usually wins on total cost of ownership.
Frequently Asked Questions
Can I connect conventional devices to an addressable panel?
Yes. Addressable monitor and zone modules bring conventional initiating circuits onto the addressable loop, which is common in retrofits and hybrid designs.
Is addressable always better?
Not always. For a small, simple building with few devices, a conventional system is often the more cost-effective and perfectly compliant choice.
Can I upgrade a conventional system to addressable?
Yes, though it typically means a new panel and, in many cases, new devices. It is often done during a major renovation or when parts for the old system become hard to source.
